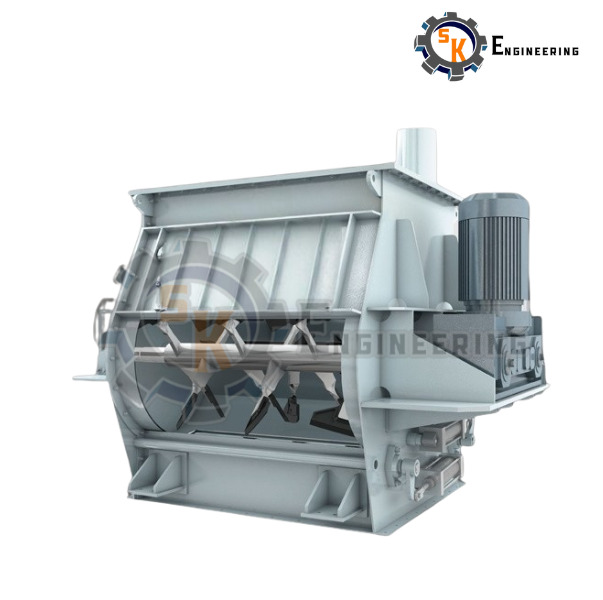

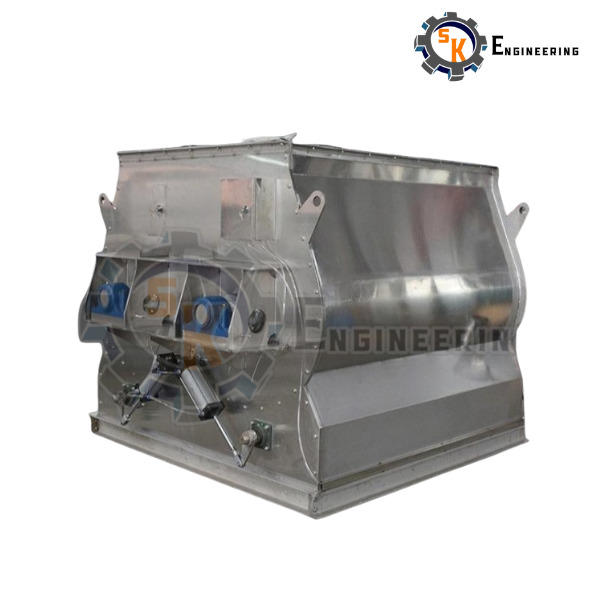

SS316 Twin Shaft Paddle Mixer

Price 500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SS316 Twin Shaft Paddle Mixer Specification

Type
Twin Shaft Paddle Mixer

Material
SS316

Capacity
500 Ltr/hr

Computerized
No

Automatic Grade
Semi-Automatic

Voltage
415 Volt (v)

Frequency (MHz)
50 Hertz (HZ)

Cutting Thickness
5 Millimeter (mm)

Size
Standard

Width
1200 Millimeter (mm)

Weight
850 Kilograms (kg)

Dimension (L*W*H)
2600 x 1200 x 1450 Millimeter (mm)

Warranty
1 Year

Mixing Homogeneity
>98%

Operating Temperature Range
10C to 80C

Shaft Speed
36 RPM

Installation
Floor mounted

Mixing Time
10-15 min / batch

Noise Level
Below 80 dB

Application
Mixing powder, granules, and other bulk materials

Sealing Type
Mechanical Shaft Seal

Hopper Opening
Full-length top loading

Discharge Type
Bottom flap

Drive Motor Power
7.5 kW

Lining
Mirror finish interior for sanitary mixing

Cleaning
Easy open doors for cleaning and maintenance

SS316 Twin Shaft Paddle Mixer Trade Information

Minimum Order Quantity
1 Unit

FOB Port
INDIA

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
1 Week

Sample Available
Yes

Packaging Details
Standard Packing

Main Domestic Market
All India

About SS316 Twin Shaft Paddle Mixer

Technical Specification SS316 Twin Shaft Paddle Mixer

1. General Description

Equipment Type: Twin Shaft Paddle Mixer (Batch type)
Construction: Horizontal U-trough mixer with dual counter-rotating shafts
Mixing Principle: Fluidized / zero-gravity mixing (fast and uniform blending)
Application: Powder, granules, slurry, viscous materials (food, pharma, chemical, feed)

2. Material of Construction (MOC)

Product Contact Parts: SS316 / SS316L
Non-contact Parts: SS304 / Mild Steel (optional)
Surface Finish:
- Internal: Mirror polish (Ra 0.8 m for GMP)
- External: Matt / dull polish
Sealing:
- Gland packing / Mechanical seal / Air purge seal

SS316 is preferred due to:

High corrosion resistance
Suitable for harsh chemicals & food/pharma use

3. Capacity & Size Range

Typical range:

Parameter	Range
Batch Capacity	100 kg 8000 kg
Volume	0.1 m 20 m
Fill Level	40% 70%

Example:

14 m mixers 5002000 kg/batch

4. Mixing Performance

Mixing Time: 30 90 seconds
Uniformity (CV): 5% (up to 3% achievable)
Mixing Efficiency: 95%
Discharge Time: 2 10 seconds

5. Drive & Power

Motor Type: Dual motor (one for each shaft)
Power Range:
- Small: 5.5 kW
- Medium: 11 30 kW
- Large: up to 75 kW
Speed:
- Shaft RPM: 20 30 RPM
Transmission:
- Gearbox + chain/sprocket or direct coupling

6. Mechanical Design

Shaft Arrangement: Twin horizontal shafts
Paddle Design:
- Adjustable angle paddles
- Bolted / welded
Bearing:
- External (to avoid contamination)
Clearance:
- Close tolerance for low residue

7. Discharge System

Type:
- Pneumatic flap valve / bomb door / slide gate
Features:
- Fast discharge (no segregation)
- Minimal residue
- Leak-proof design

8. Liquid Addition System (Optional)

Spray nozzles for uniform liquid addition
Liquid addition capacity: up to 5% of batch

9. Control System

PLC-based control panel (optional)
Automation features:
- Timer-based mixing
- Interlocks & safety
- Load cell batching (optional)

10. Safety & Compliance

Safety guards on moving parts
Emergency stop system
GMP / FDA compliant design (optional)
Dust-proof & explosion-proof options

11. Dimensions & Weight (Typical)

Length: 1.2 m 5.5 m
Width: 0.6 m 3.5 m
Height: 0.8 m 2.5 m
Weight: 200 kg 13,000 kg

12. Key Features

Fast mixing (4560 sec per batch)
Gentle mixing (no particle damage)
High homogeneity
Low power consumption
Suitable for fragile and fine materials

13. Applications

Food: Flour, spices, protein powders
Pharma: API blending, excipients
Chemical: Pigments, fertilizers
Feed: Animal & poultry feed

Summary (Quick Specs)

MOC: SS316 (contact parts)
Capacity: 100 kg 8000 kg/batch
Mixing Time: 3090 sec
Power: 5.5 75 kW
Uniformity: CV 5%
RPM: ~2030
Discharge: Pneumatic / manual

Add to Cart now for instant savings on the impeccably engineered SS316 Twin Shaft Paddle Mixer! Experience stellar performance with a prodigious 500-liter capacity, tailored for mixing powder, granules, and bulk materials. Enjoy seamless operation with a 7.5 kW drive, 36 RPM shaft speed, and remarkable mixing homogeneity above 98%. The mirror-finish lining ensures sanitary processing, while the full-length top hopper enables effortless loading. Benefit from easy open doors for convenient cleaning, and mechanical shaft seals for reliable operations-truly a markdown worthy investment by a trusted manufacturer and supplier from India.

Advanced Features and Optimum Use

The SS316 Twin Shaft Paddle Mixer boasts a mirror-finish interior, ensuring sanitary mixing for powder, granules, and other bulk substances. Its robust twin-shaft design provides consistent mixing with over 98% homogeneity within just 10-15 minutes per batch. Ideal for semi-automatic operations, it's equipped with easy open doors for quick cleaning and maintenance, making it perfect for industries seeking efficiency and impeccable results in every cycle.

Reliable Supply with Certified Assurance

With a prodigious supply ability, the SS316 Twin Shaft Paddle Mixer can be quickly dispatched from certified suppliers in India. All orders are promptly processed and handed over through leading FOB ports, ensuring timely and dependable delivery. Certifications guarantee quality and compliance, giving customers confidence in every transaction. Benefit from reliable order processing and rapid fulfillment for your essential mixing equipment requirements.

FAQ's of SS316 Twin Shaft Paddle Mixer:

Q: How does the SS316 Twin Shaft Paddle Mixer achieve high mixing homogeneity?

A: The SS316 Twin Shaft Paddle Mixer uses a twin-shaft paddle mechanism that creates a multidirectional flow, ensuring powders, granules, and other bulk materials are thoroughly blended. Its design consistently delivers homogeneity rates above 98% per batch.

Q: What materials can be mixed using this paddle mixer?

A: This mixer is suitable for a wide range of bulk materials, including powders, granules, and similar substances. Its sanitary, mirror-finish SS316 interior also makes it ideal for applications requiring high cleanliness standards.

Q: When is cleaning and maintenance recommended for this mixer?

A: Routine cleaning and maintenance are recommended after each mixing batch or at the end of each shift. The easy open doors facilitate quick access for thorough cleaning, maintaining optimal performance and hygiene.

Q: Where is the SS316 Twin Shaft Paddle Mixer manufactured and supplied from?

A: This paddle mixer is manufactured and supplied by reputable producers in India, known for their quality engineering and reliable international distribution.

Q: What is the process for ordering and receiving the mixer?

A: Place your order by adding the mixer to your cart. Enjoy instant savings and a markdown price. After order confirmation, quick dispatch and streamlined order processing ensure the equipment is securely handed over via established FOB ports for prompt delivery.

Q: What benefits does the mirror-finish lining offer?

A: The mirror-finish lining provides a smooth, non-porous interior, supporting sanitary mixing conditions and making cleaning faster and more efficient. This feature is especially beneficial for industries where hygiene is paramount.
